J44H铸钢角式截止阀
产品名称：J44H铸钢角式截止阀
产品型号：J44H
连接方式：法兰
结构形式：角式
驱动方式：手动
产品口径：50mm～150mm
公称压力：1.6MPa～6.4MPa
阀体材质：铸钢、铸铁、不锈钢
产品详情
J44H/Y铸钢角式截止（止回、节流）阀
设计与制造标准：
●设计与制造：BS1873 BS5160 GB12233
●法兰尺寸：ANSIB16.5 JB/T79 GB9113
●压力温度：ANSIB16.34
●结构长度：ANSIB16.10 BS1873 GB12221
●对焊连接尺寸：ANSIB16.25
●检验与实验：BS6755 GB/T13927

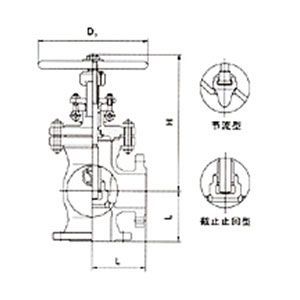

安装尺寸及重量：
| ANSI 150Lb | ||||||||||||
| NPS | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |||
| L | 102 | 108 | 121 | 146 | 178 | 203 | 248 | 311 | 349 | |||
| H | 375 | 390 | 425 | 515 | 535 | 570 | 645 | 715 | 995 | |||
| D0 | 200 | 250 | 250 | 300 | 300 | 350 | 400 | 450 | 600 | |||
| Wt | 20 | 35 | 40 | 58 | 73 | 98 | 202 | 305 | 405 | |||
| GB 1.6MPa | ||||||||||||
| DN | 50 | 65 | 80 | 100 | 125 | 150 | ||||||
| L | 125 | 145 | 155 | 175 | 200 | 225 | ||||||
| H | 375 | 390 | 425 | 515 | 535 | 570 | ||||||
| D0 | 200 | 250 | 250 | 300 | 300 | 350 | ||||||
| Wt | 20 | 35 | 40 | 58 | 73 | 98 | ||||||
| ANSI 300Lb | ||||||||||||
| NPS | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |||
| L | 133 | 146 | 159 | 178 | 200 | 222 | 279 | 311 | - | |||
| H | 390 | 425 | 450 | 565 | 675 | 715 | 860 | 1265 | - | |||
| D0 | 200 | 250 | 250 | 350 | 400 | 450 | 600 | 600 | - | |||
| Wt | 33 | 46 | 61 | 105 | 145 | 192 | 311 | 430 | - | |||
| GB 2.5MPa | GB 4.0MPa | |||||||||||
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 50 | 65 | 80 | 100 | 125 | 150 |
| L | 125 | 145 | 155 | 175 | 200 | 225 | 125 | 145 | 155 | 175 | 200 | 225 |
| H | 375 | 390 | 425 | 515 | 535 | 570 | 375 | 390 | 425 | 515 | 535 | 570 |
| D0 | 200 | 250 | 250 | 300 | 300 | 350 | 200 | 250 | 250 | 300 | 300 | 350 |
| Wt | 22 | 37 | 42 | 61 | 75 | 101 | 21 | 36 | 41 | 60 | 74 | 99 |
| GB 6.4MPa | ||||||||||||
| DN | 50 | 65 | 80 | 100 | 125 | 150 | ||||||
| L | 150 | 170 | 190 | 215 | 250 | 275 | ||||||
| H | 390 | 425 | 450 | 565 | 675 | 715 | ||||||
| D0 | 200 | 250 | 250 | 350 | 400 | 450 | ||||||
| Wt | 33 | 46 | 61 | 105 | 145 | 190 | ||||||
